Sleeps 5
-
3 Slides
-
Walk-Thru Bath
-
32ft Long
-
Autumn Ridge, Nantucket, Reflection, Serene

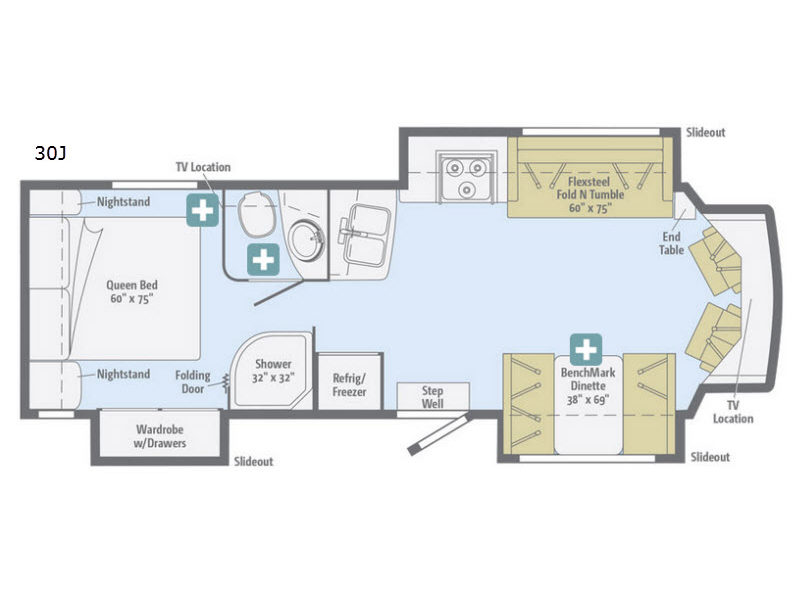

30J Floorplan
Specifications
Sleeps | 5 | Slides | 3 |
Length | 32 ft 4 in | Ext Width | 7 ft 11 in |
Ext Height | 10 ft 3 in | Int Height | 6 ft 5 in |
Interior Color | Autumn Ridge, Nantucket, Reflection, Serene | Exterior Color | Coffee, Sierra, Smoke, Tuscan Sun Full Body Paint |
Hitch Weight | 5000 lbs | GVWR | 14500 lbs |
Fresh Water Capacity | 34 gals | Grey Water Capacity | 34 gals |
Black Water Capacity | 26 gals | Furnace BTU | 30000 btu |
Generator | 4000 watt Cummins Onan MicroQuiet | Fuel Type | Gas |
Miles | 25793 | Engine | Triton 6.8L V10 |
Chassis | Ford E450 | Horsepower | 305 hp |
Fuel Capacity | 55 gals | Wheelbase | 220 in |
Available Beds | Queen | Refrigerator Type | 2 Door with Freezer |
Convection Cooking | Yes | Cooktop Burners | 3 |
Shower Size | 32" x 32" | Number of Awnings | 1 |
Axle Weight Front | 5000 lbs | Axle Weight Rear | 9600 lbs |
LP Tank Capacity | 18 | Water Heater Capacity | 6 gal |
Water Heater Type | Electric | AC BTU | 15000 btu |
Basement Storage | 102 cu. ft. | TV Info | LR 40" HDTV, BR 24" HDTV |
Awning Info | Power | Gross Combined Weight | 22000 lbs |
Shower Type | Radius | Electrical Service | 45 amp |
VIN | 1FDXE4F58GDC57714 |
Description
25,793 Miles
Generator Hours-441
Travel comfortably in this Winnebago Cambria class C gas coach featuring triple slide outs for added interior space, a rear bedroom layout, and so much more!
Step inside model 30J and see just how convenient your travel time will be. There are dual opposing slide outs in the main living space with a slide out BenchMark dinette with footrests on both sides to the right as you enter. There are three sets of seat belts making travel for your guests safe, plus this can also be used for additional sleeping space for one extra guest.
Opposite enjoy a 60" x 75" slide out Flexsteel Fold N Tumble sofa with seat belts also. This slide out contains a three burner range as well. You can choose a Rest Easy sofa if you like that is also the same size. Adjacent find a double sink with overhead storage just off the slide. To the left of the entry door find the refrigerator/freezer for all of your perishable food items.
Above the cab area you will find a 40" HDTV to enjoy!
Head toward the rear of the coach and walk-through the bathroom area with corner shower on your left and private toilet area and vanity including sink on your right.
There is a folding door that closes off the bedroom space for more privacy. Here you will enjoy sleeping on a 60" x 75" queen size bed with dual nightstands, plus a slide out wardrobe area including drawers. A nice TV location is along the outer toilet area wall where you will enjoy a 24" HDTV, and more!
Features
- 305-hp 6.8L V10 SEFI Triton® engine
- TorqShift™ 6-speed automatic transmission w/overdrive
- 155-amp. alternator
- 4-wheel ABS
- Trailer Hitch 5,000-lb. drawbar/350-lb. maximum vertical tongue weight and wiring w/7-pin connector
- Stainless steel wheel liners
- Rear auxiliary air springs
Optional
- Hydraulic leveling jacks w/automatic controls
- Stylized aluminum wheels
Exterior
- Powered patio awning w/metal wrap w/LED lighting
- Porch light w/interior switch
- Stepwell light w/interior switch
- Premium high-gloss skin
- Rear mud flaps
- Large rear storage compartment w/rotocast base, drain plug, 30" x 72" folding table
- Fiberglass running boards w/wheel lips
Optional
- Entertainment Center AM/FM stereo, CD/DVD player w/remote, audio and video jacks, 2 exterior speakers
Heating, Cooling System
- 15,000 BTU high-efficiency air conditioner w/heat pump
- 30,000 BTU low-profile, ducted furnace
Electrical System
- Exterior AC duplex receptacle and TV jack
- 4,000-watt Cummins Onan® MicroQuiet™ gas generator
- AC/DC load center, 45-amp. converter/charger
- Power Cord Compartment 30-amp. power cord, shoreline/generator automatic changeover switch, cable TV input, portable satellite dish hookup
- Coach battery disconnect system
- Automatic dual-battery charge control
- Auxiliary start circuit
- 2 deep-cycle, Group 31 Marine/RV batteries
- 1,000-watt DC/AC inverter
Optional
- 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel
Plumbing System
- Rear Trunk w/Service Center pressurized city water hookup w/diverter valve, exterior wash station w/lighted pump switch
- Drainage valve compartment
- Gravity water tank fill w/lockable door
- 10' sewer hose
- 6-gallon electric ignition, 110-volt/LP water heater w/Energy Management System
- TrueLevel holding tank monitoring system
- Winterization Package water heater bypass valve and siphon tube
- Permanent-mount LP tank w/gauge
- Heated holding tank compartment
- On-demand water pump
- Holding tank flushing system
- Sewage pump (macerator) (27K)
Optional
- Tankless water heater w/recirculation pump
Interior
- Home Theater Sound System receiver, DVD player, amplifier, 5 speakers, subwoofer
- 28" HDTV (27K)
- 40" HDTV (30J)
- USB/multi-outlet charging stations
- LED lights
- Satellite system ready
- Video selection system
- Front wraparound curtain
- MCD blackout roller shades
- Tinted windows
- Soft vinyl ceilings
- Amplified digital HDTV antenna
- OnePlace® systems center
- Powered roof vent (bath)
- Powered ventilator roof vent (bedroom)
- Roof vent (lounge)
- Glass flush mount bi-fold range cover
Optional
- Skylight w/sliding screen, pleated shade, and vent
- Interior Upgrade Package galley backsplash, cab seat lounge cushions (2), dash and beverage tray appliqué, carpet floor mat in the cab, decorative wall mirror (27K), decorative picture (30J), Corian® sink covers (2), sofa throw pillows (2), MCD solar/blackout roller shades (in select areas)
- Winegard® automatic satellite TV antenna system
- Frameless, dual-pane windows
- Deluxe powered ventilator fan w/rain cover, remote, and thermostat (bedroom)
Galley
- Polished Corian® countertops
- Flip-up Corian countertop extension (30J)
- 2-door refrigerator/freezer
- Recessed 3-burner range top w/storage below
- Microwave/convection oven w/range fan (touch control)
- Double-bowl stainless sink
- Pantry (NA w/4-door refrigerator option) (27K)
- Glass partition (30J)
- Cold water filtration system
Optional
- 4-door refrigerator/freezer w/icemaker (27K)
Bath
- Skylight
- Flexible showerhead
- Curved textured glass shower door (30J)
- Retractable, self-cleaning screen shower door (27K)
- Porcelain toilet w/foot pedal and sprayer
- Water pump switch
- Stainless steel sink
- Towel bar(s) (27K)
- Towel ring(s)
- Tissue holder
Bedroom
- Queen bed w/foam mattress, headboard, bedspread, pillows, and pillow shams
- 24" HDTV
Optional
- Queen Ideal Rest® Nouveau™ Digital control mattress w/remotes
Cab Conveniences
- Cab seats hinged armrests, fixed lumbar support, and multi-adjustable slide/swivel/recline
- Radio/Rearview Monitor System DVD receiver with 6.2" LCD color touch screen, handheld remote, iPod®/MP3 input, rear color camera, Bluetooth®, SiriusXM® (includes 90-day trial subscription), Spotify®, AppRadio One
- Dual airbags
- 3-point seat belts
- Chassis/house battery radio power switch
- Power assist steering w/tilt wheel
- Cruise control
- 12-volt powerpoints
- Power door locks
- Sunvisors
- Power exterior mirrors w/defrost
- Cab mat (rubber)
Optional
- Infotainment Center with Rand McNally RV GPS 6" touch screen color monitor w/split screen function, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio w/CD/DVD player, handheld remote, SiriusXM™ (includes 90-day trial subscription), iPod® and USB connections, Bluetooth™, color rearview camera
- Sideview color camera system (cameras mounted to exterior mirrors)
- SiriusXM® satellite radio prep, receiver, antenna (subscription not included)
Please see us for a complete list of features and available options!
